FFS2119 SERIES

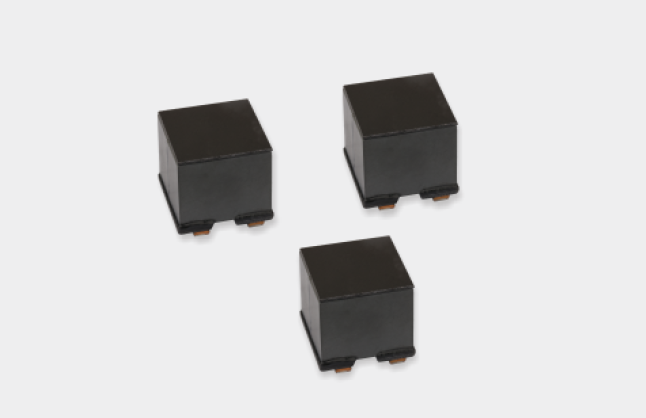

SMT flat cmc

Resource Download

Datasheet

3D Model

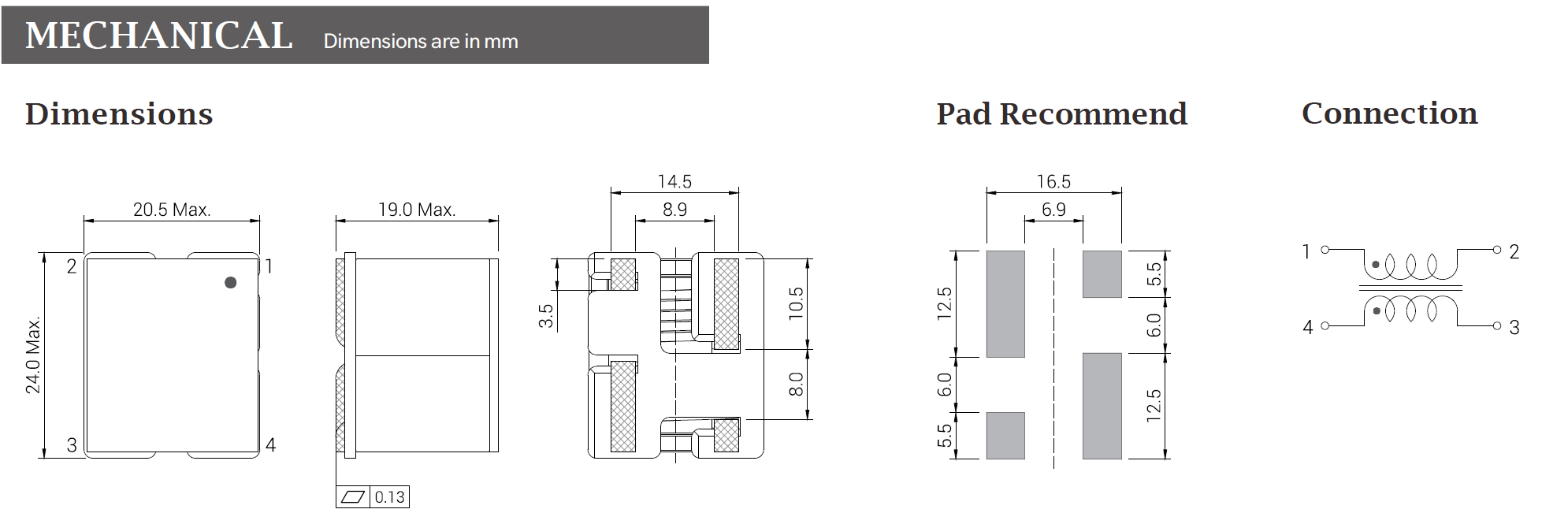

P/N	Inductance(μH,±45%) 1-2=4-3	DCR(mΩ ,Max.) 1-2=4-3	Irat(A,Max)	Turns Ratio(±5%) 1-2:4-3	Hi-Pot(VDC) 1&2-4&3

P/N	Inductance(μH,±45%) 1-2=4-3	DCR(mΩ ,Max.) 1-2=4-3	Irat(A,Max)	Turns Ratio(±5%) 1-2:4-3	Hi-Pot(VDC) 1&2-4&3
FFS2119-281Y	280	1.8	30	1:1	200
FFS2119-391Y	390	2.3	25	1:1	200
FFS2119-511Y	510	2.8	21	1:1	200
FFS2119-651Y	650	3.6	18	1:1	200
FFS2119-801Y	800	4.6	15	1:1	200

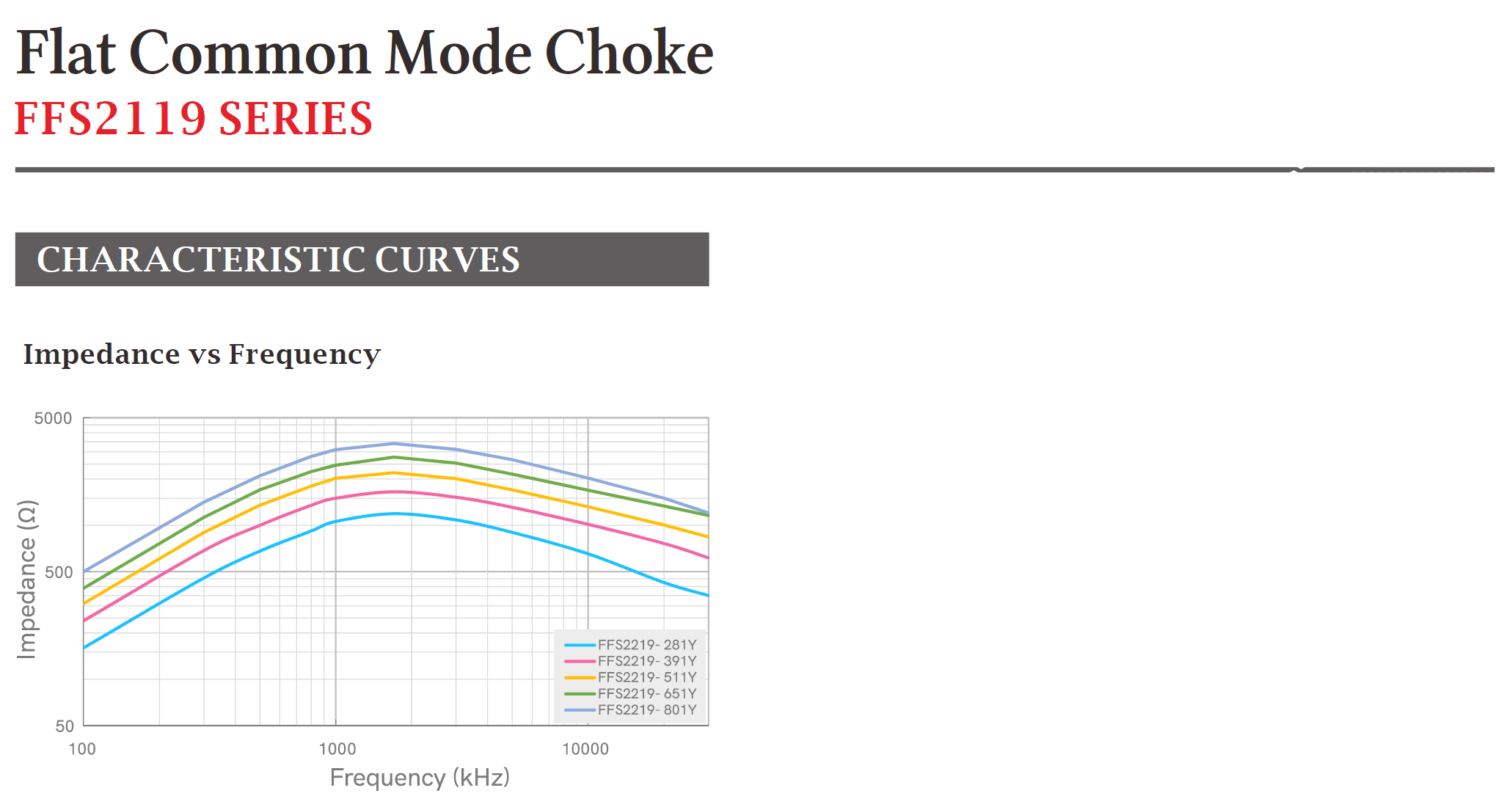

NOTES:

1. All electrical specifications are referenced to 25°C ± 5°C ambient.

2. The inductance is measured at 100 kHz, 0.1 Vrms, 0 ADC.

3. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range.

4. The rated current means DC current at 25°C that causes an temperature rise of 40°C approx.

Temperature rise is highly dependent on many factors including PCB land pattern, trace size, and proximity to other components.

Therefore temperature rise should be verified in application conditions.
