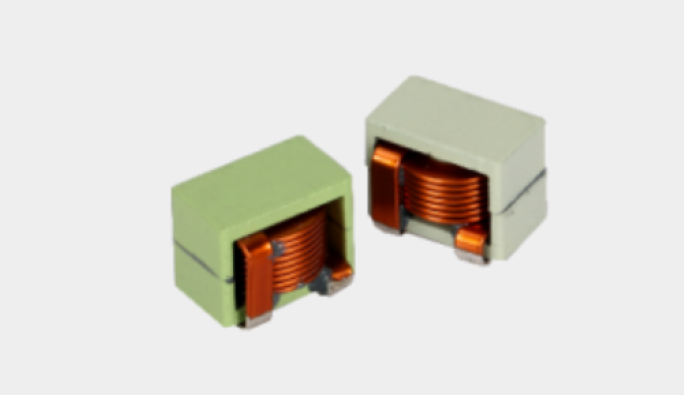

CAM2515 SERIES
Flat Metal Inductor
  • Assembly structure.
  • Soft saturation for high peak current handling.
  • Flat wire windings provide extremely low DCR.
  • Operating temperature range: -40°C~+125°C, self-temperature rise included.
  • Ideal for for POL, VRM, VRD, and other high power applications.
Resource Download

Product specifications

CAM2515-1R6M 1.6 0.6 135
CAM2515-2R8M 2.8 0.8 105
CAM2515-4R4M 4.4 1.2 84
CAM2515-6R6M 6.6 1.6 70
CAM2515-8R6M 8.6 2.1 59
CAM2515-110M 11.2 2.7 52
CAM2515-140M 14.2 3.2 46
CAM2515-170M 17.5 3.8 41
CAM2515-210M 21.2 4.9 37
CAM2515-250M 25.2 5.3 34
CAM2515-300M 30 6.2 31

Notes:

1. All electrical specifications are referenced to 25°C ± 5°C ambient.
2. The inductance is measured at 100 kHz, 0.1 Vrms, 0 ADC.
3. Isat, saturation current, means DC current at 25°C that causes an initial inductance drop of 20% approx.
